| 型号：460M | 品牌：3M | 粘合材料类型：玻璃、 电子元件、 皮革、 塑料类、 橡胶类、 纤维类、 石材类、 金属类、 木材类、 水泥制品、 陶瓷、 医学类、 纸张类、 其他材质、 其他 |
| 有效物质≥：90％ |
Scotchcast鈩� Resin Joint Kits
3M鈩� resin insulated splicing kits are designed for indoor, outdoor (weather exposed), direct buried or submersed applications. 3M brand Scotchcast鈩� Resins are *** solids, electrical grade, hydrolytically stable insulating resins. Their unique electrical and physical properties make them ideal for insulating and protecting electrical/electronic pars and assemblies. Their physical features also make them suitable for non-electrical, general use applications, for example as adhesives or sealants.
Features Benefits
路 Utilizes a 鈥渂ulge鈥� type mould 路 90A series are ideal for armoured cables
路 Features Scotchcast鈩� 460M polyurethane resin 路 Tough and moisture-proof
路 Meets VDE 0278, BS 6910 路 Long lasting physical and electrical protection
路 All kits include tape for insulating ferrules and sealing mould
ends
路 Tried and tested for over 30 years
3 Scotchcast鈩� 460M Resin
Product Description
3M Brand 460M Resin is high performance, ambient temperature curing resin with hydrophobic properties. It is a two part, solvent free resin system. It has excellent flow characteristics, eliminating any void formation. The low exothermic reaction leads to minimal shrinkage during curing. It is compatible with all metallic and synthetic materials normally used in cable manufacture.
Application
To provide secondary insulation in cast L.T. Resin splices
Process Figures
Mix Ratio : | A : B | = | 70 : 30 |
Pot Life at | 23 掳C | > | 15 minutes |
Gel-time at 25 掳C | = | 25 minutes | |
Tack Free Time | = 40 minutes | ||
Max exotherm time | = 40 minutes | ||
Peak Exotherm | < 80 掳C | ||
Cure Time at 23 掳C | = 24 hours | ||
Viscosity - 5 min mix | < 1 000 cps | ||
Application Temp. | = 0掳C 鈥� 40掳C | ||
Shelf Life | > 24 Months | ||
Typical Properties Property Value
PART A | PART B | |||||
Appearance | Cream Liquid | Appearance | Brown liquid | |||
Flash Point | > 200 掳C | Flash Point | > 200 掳C | |||
Viscosity | 1 500 cps | Viscosity | 200 cps | |||
Density | 1.12 | Density | 1.21 | |||
Typical Properties Part A + Part B (Cured) | ||||||
Appearance: | Cream solid | Adhesion to Cu: | 1.5 MPa | |||
Hardness: | 50 Shore D | Adhesion to Al: | 1.2 MPa | |||
Density: | 1.16 | Adhesion to PVC: | 1.7 MPa | |||
Shrinkage during cure: | < 2.5 % | Adhesion to PE: | 0.78 MPa | |||
Impact strength: | > 20 J/cm2 | Surface Resistivity: | > | 1 | X 1010 | |
Tensile strength: | > 4 N /mm2 | Volume Resistivity: | > | 1 | X 1010 | |
Tear strength: | > 63 N/mm thickness | Dielectric strength: | > | 15 kV/ mm | ||
Elongation: | 40 % | Water absorption: | 30mg@24hrs, 23掳C | |||
Installation
Remove the UNIPAK bag from the guard bag, break the barrier between the two compartments and mix the resin well for three minutes. Then cut one corner of the UNIPAK bag and pour the resin into the mould or work piece. In Mixpacks, pour the contents of the small can into the large can. Mix thoroughly with the provided stirrer stick until you get a homogenous colour (at least 3 minutes). Pour the resin into the mould or work piece.
Packaging

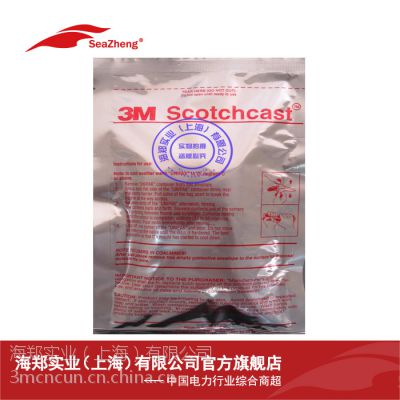

3M Brand 460M Resin packed in an aluminium foil guard bags which contain less than 1.0 % magnesium.
Medical Data
3M Material safety data sheets are available on request. General safety procedure is to prevent skin and eye contact and to provide adequate ventilation.
Eye contact 鈥� Flush with plenty of water, call a physician.
